Fully Automatic Cleaning and Hardening Machine(Car Room Film)
Product introduction
· The ultrasonic frequency of the medicine sink part:28KHZ,the ultasonic frequency of the clear sink part:40KHZ
· Tanks and tanks are rounded to reduce filth.
· The tank body and water tank are all covered wth cotton insulation.
· Touch screen is cantilevered for easy movement and operation
· Outer frameof the machine is made of stainless steel
· Spraying trough adopts mobile scanning spray, no dead angles for cleaning.
· Dry conveyor adopts overall lifting traverse to reduce friction
Product advantages
1、advanced equipment technology, exquisite workmanship
2、the normal service life of more than 15 years, the qualified rate of more than 95%, to reach the technical level of imported equipment, more cost-effective.
3、High cleanliness of equipment, special welding process for pipeline.

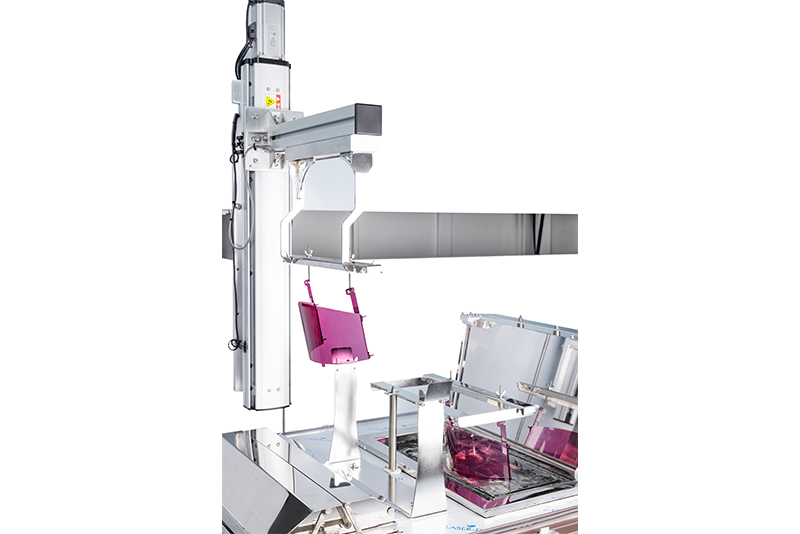

4、the manipulator can complete high-speed and accurate operation, replacing the uncertainty and inefficiency of manual operation, and realizing multiple tasks such as processing, assembly, handling and sorting.
5、our company has nearly 20 years of experience in technical and after-sales service team, from design and production to after-sales service to provide customers with professional solutions.
Device function
1.Working temperature of HC fluid 5-20
2.Oven :Tank type heating
3.Ultrasonic:28KHZ/40KHZ
4.Fresh air system: Complete FFU system
Production technology
Manual/automatic feeding → Washing with medicine water →Washing with RO water →Washing with DI water → Cutting water →Drying → Hardening → Precuring →Secondary hardening→Secondary curing →manually/ automatically feeding

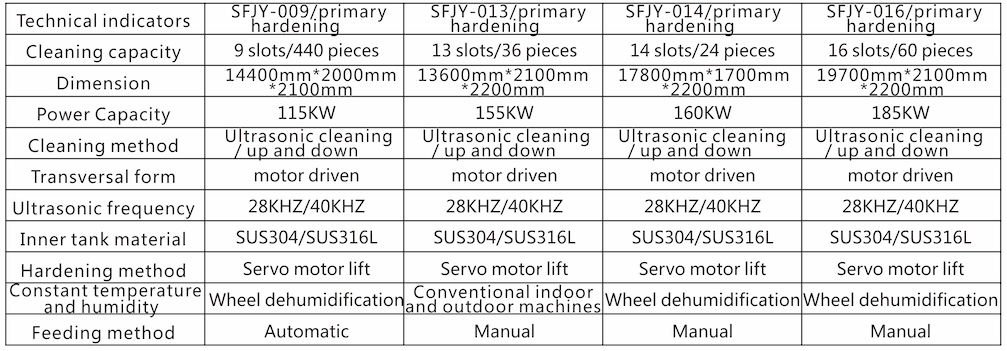

Technical indicators
For more models of products, please contact us. We will be happy to serve you！
